Overspeed Governors

R1 Monodirectional

R1LR - R1 200 - R1 250 - R1 300 Bidirectional

The simplest, the most widespread.

Triangolo verde

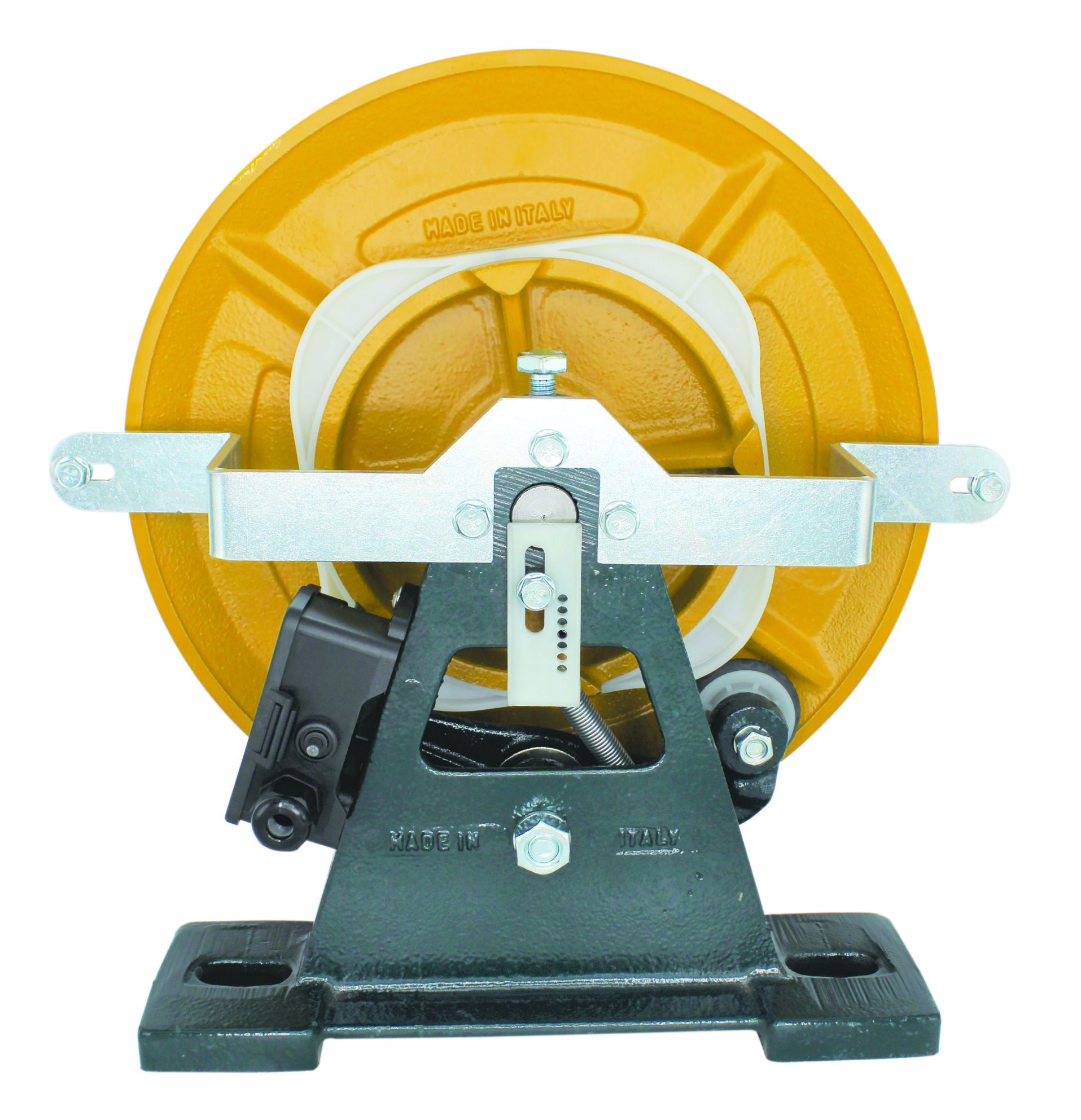

Overspeed governor R1 Monodirectional

R1LR | R1 200 | R1 250 | R1 300 Bidirectional

Approved by TÜV Germany according to Directive 2014/33/EU and standards EN81-20/50.

Available with protection cover and rope safety guard. With or without test grove.

Triangolo Rosso
R1 and R1LR R1 200 R1 250
Pulley Type Pulley Ø 300 mm Monodirectional o Bidirectional for rope diameter Ø 6-8 mm Pulley Ø 200 mm Bidirectional for rope diameter Ø 6-8 mm Pulley Ø 250 mm Bidirectional for rope diameter Ø 6-8 mm
Nominal Speed Up to 2,23 m/s Up to 1,83 m/s Up to 1,96 m/s
Tripping Speed From 0,41 m/s up to 2,57 m/s From 0,30 m/s up to 2,11 m/s From 0,31 m/s up to 2,25 m/s
Certifications EN81-20/50, 2014/33/EU, Gost TP TC 011/2011, GB 25194-2010, TSG T7007-2016, GB7588-2003+XG1-2015 EN81-20/50, 2014/33/EU, Gost TP TC 011/2011, GB TSG T7007-2016, GB7588-2003+XG1-2015 EN81-20/50, 2014/33/EU, Gost TP TC 011/2011, GB TSG T7007-2016, GB7588-2003+XG1-2015
Optional
Test groove
Rope safety guard
Protection cover
Remote Control
(IP 50)
Encoder
UCM
<
