Overspeed Governors

LK250 Bidirectional

Small, compact, dynamic and with everything you need.

Triangolo verde

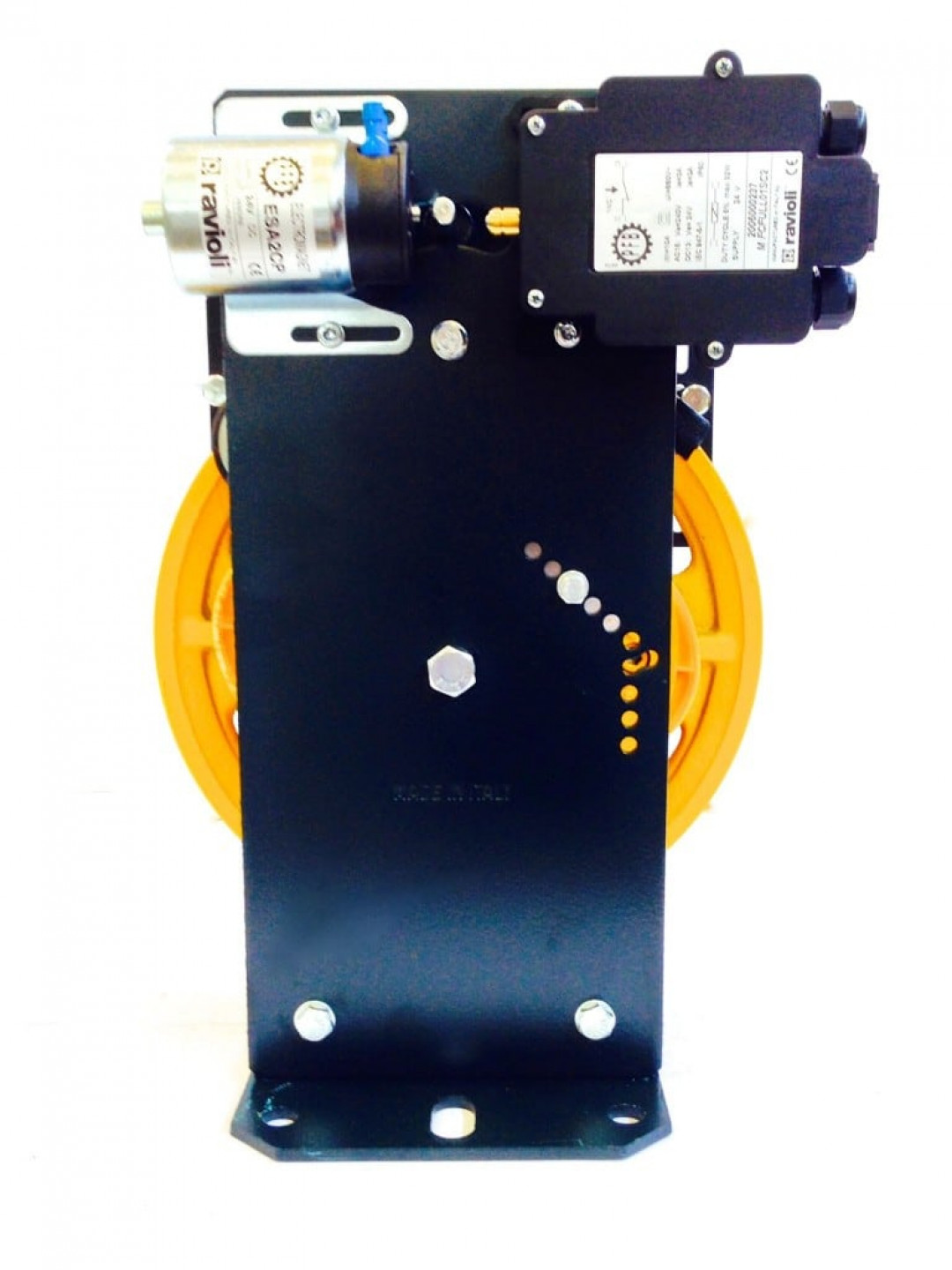

Overspeed governor LK250 Bidirectional

Bidirectional overspeed governor approved by TÜV SUD according to Directive 2014/33/EU and EN81-20/50 standards.

Available with test groove, remote control, encoder, protection, rope safety guard and hang up version, with device for uncontrolled car movement and anti-creeping.

Triangolo Rosso
LK250 Bidirectional
Pulley Type Pulley Ø 250 mm with hardened groove Bidirectional for rope diameter 6-8 mm
Nominal Speed Up to 1,74 m/s
Tripping Speed From 0,32 m/s up to 2,00 m/s
Hardened groove
Certifications EN81-20/50, 2014/33/EU, Gost TP TC 011/2011, GB 25194-2010, TSG T7007-2016, GB7588-2003+XG1-2015
Test groove
Rope safety guard
Protection cover
Remote control
(IP 50)
Incremental encoder

🔽 : down tripping
🔽🔼 : up and down tripping
