Overspeed Governors
LK300 Bidirectional
The most powerful LK. Up to 3.37 m/s.
-(1).png?data=eyJtZWRpYV9pZCI6Mjg0OTUwLCJieXRlcyI6OTg1MzgsInByb2plY3RfaWQiOjY5LCJoYXNfaW1naXgiOjF9)

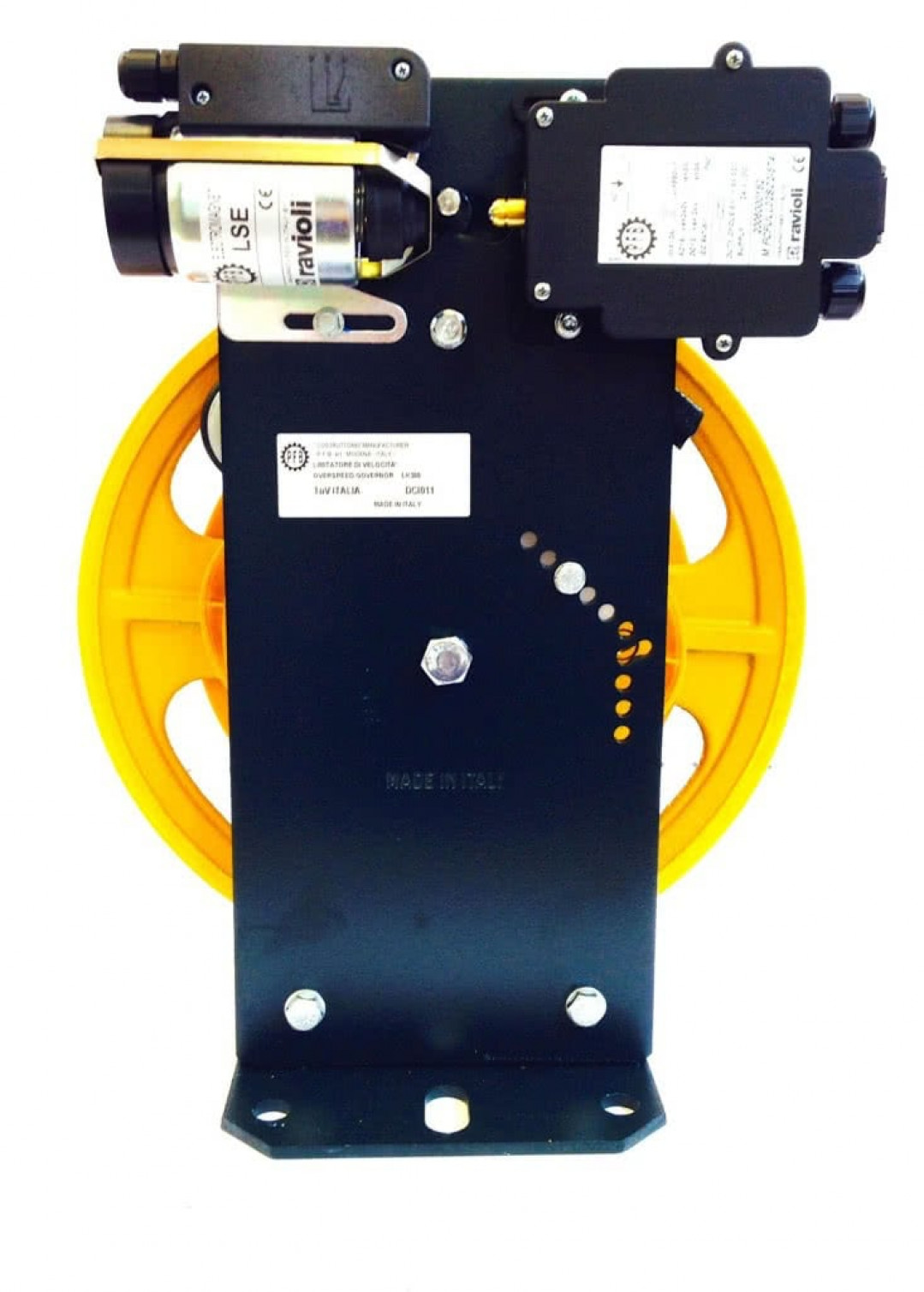

Overspeed governor LK300 Bidirectional
Bidirectional overspeed governor approved by TÜV Germany according to Directive 2014/33/EU and standards EN81-20/50.
Available complete with test groove, remote control, encoder, protection, rope safety guard and hang up version, with device for uncontrolled cabin movement and anti-creeping.
| LK300 Bidirectional | |
|---|---|
| Pulley Type | Pulley Ø 300 mm with hardened groove Bidirectional for rope diameter 6-8 mm |
| Nominal Speed | Up to 2,93 m/s |
| Tripping Speed | From 0,40 m/s up to 3,37 m/s |
| Hardened groove | |
| Certifications | EN81-20/50, 2014/33/EU, Gost TP TC |
| Optional | |
|---|---|
| Test groove | |
| Rope safe guard | |
| Protection cover | |
| Remote control (IP 50) |
|
| Incremental encoder | |
| UCM |
Combinable tension weights
🔽 : down tripping
🔽🔼 : up and down tripping
