Overspeed Governors

R12 Rope Clamping

Up to 5.06 m/s. Wow.

Triangolo verde

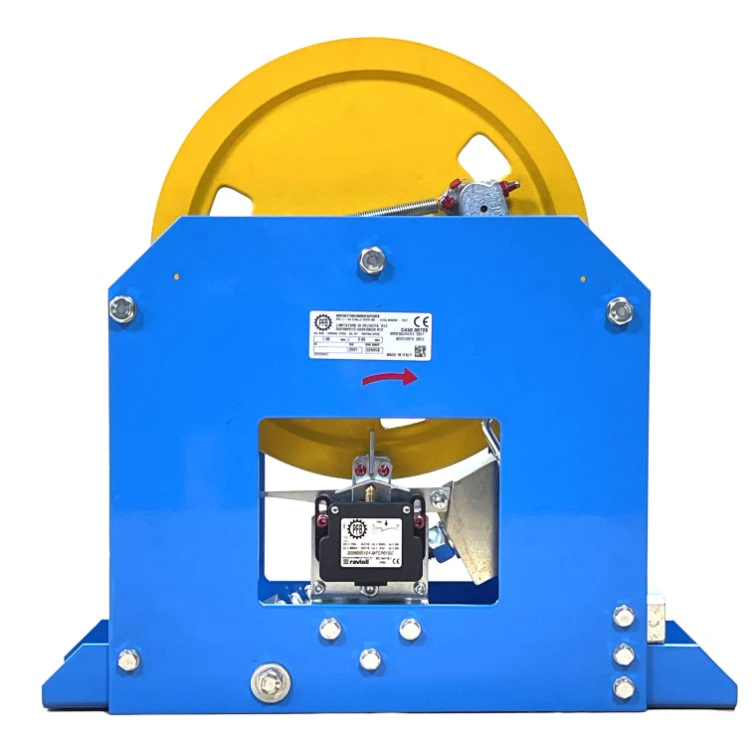

Overspeed governor R12 Rope Clamping

Approved by TÜV SUD according to Directive 2014/33/EC and EN81-20/50 standards.

Supplied with protection carter.

Triangolo Rosso
R12 Rope Clamping
Pulley Type Pulley ø 345 mm monodirectional for rope diameter 8-10 mm.
Nominal Speed Up to 4,00 m/s
Tripping Speed From 1,00 m/s up to 5,06 m/s
Protection cover
Certifications EN81-20/50, 2014/33/EU
Optional
Test groove
Rope safety guard
Remote control
(IP 50)
Encoder incrementale
UCM

🔽 : down tripping
🔽🔼 : up and down tripping
