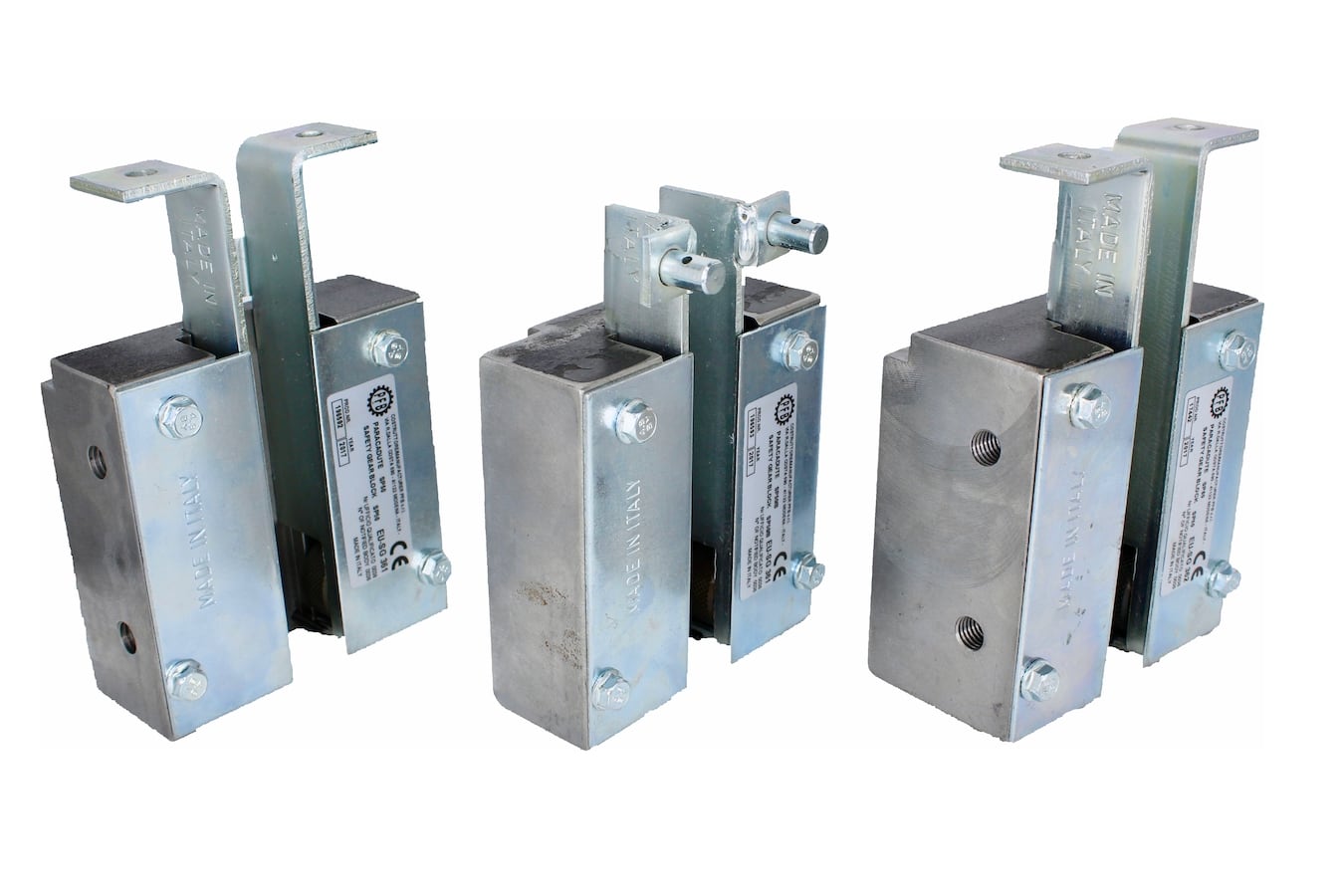

Instantaneous Safety Gears
With double rollers
With double rollers
Type SP 50 – SP 50/B – SP 60 for guide from 6 a 16 mm. Approved by TÜV Germany according to Directive 95/16/EC and EN81-1/2 and 2014/33/EU directive and EN81-20/50.
| SP50 tripping speed (m/s) | SP50 load for guide 6-16 mm (kg) |
|---|---|
| 0.50 | 3250 |
| 0.60 | 3128 |
| 0.70 | 2994 |
| 0.80 | 2853 |
| 0.90 | 2709 |
| 1.00 | 2564 |
| 1.10 | 2421 |
| 1.20 | 2281 |
| 1.32 | 2120 |
| 1.65 | 1726 |
| SP60 tripping speed (m/s) | SP60 load for guide 6-12 mm (kg) |
|---|---|
| 0.50 | 3250 |
| 0.60 | 3128 |
| 0.70 | 2994 |
| 0.80 | 2853 |
| 0.90 | 2709 |
| 1.00 | 2564 |
| 1.10 | 2421 |
| 1.20 | 2281 |
| 1.32 | 2120 |
| 1.65 | 1726 |
| SP60 tripping speed (m/s) | SP60 load for guide 14-16 mm (kg) |
|---|---|
| 0.50 | 3924 |
| 0.60 | 3776 |
| 0.70 | 3614 |
| 0.80 | 3444 |
| 0.90 | 3270 |
| 1.00 | 3095 |
| 1.10 | 2922 |
| 1.20 | 2754 |
| 1.32 | 2560 |
| 1.65 | 2084 |
Associated products

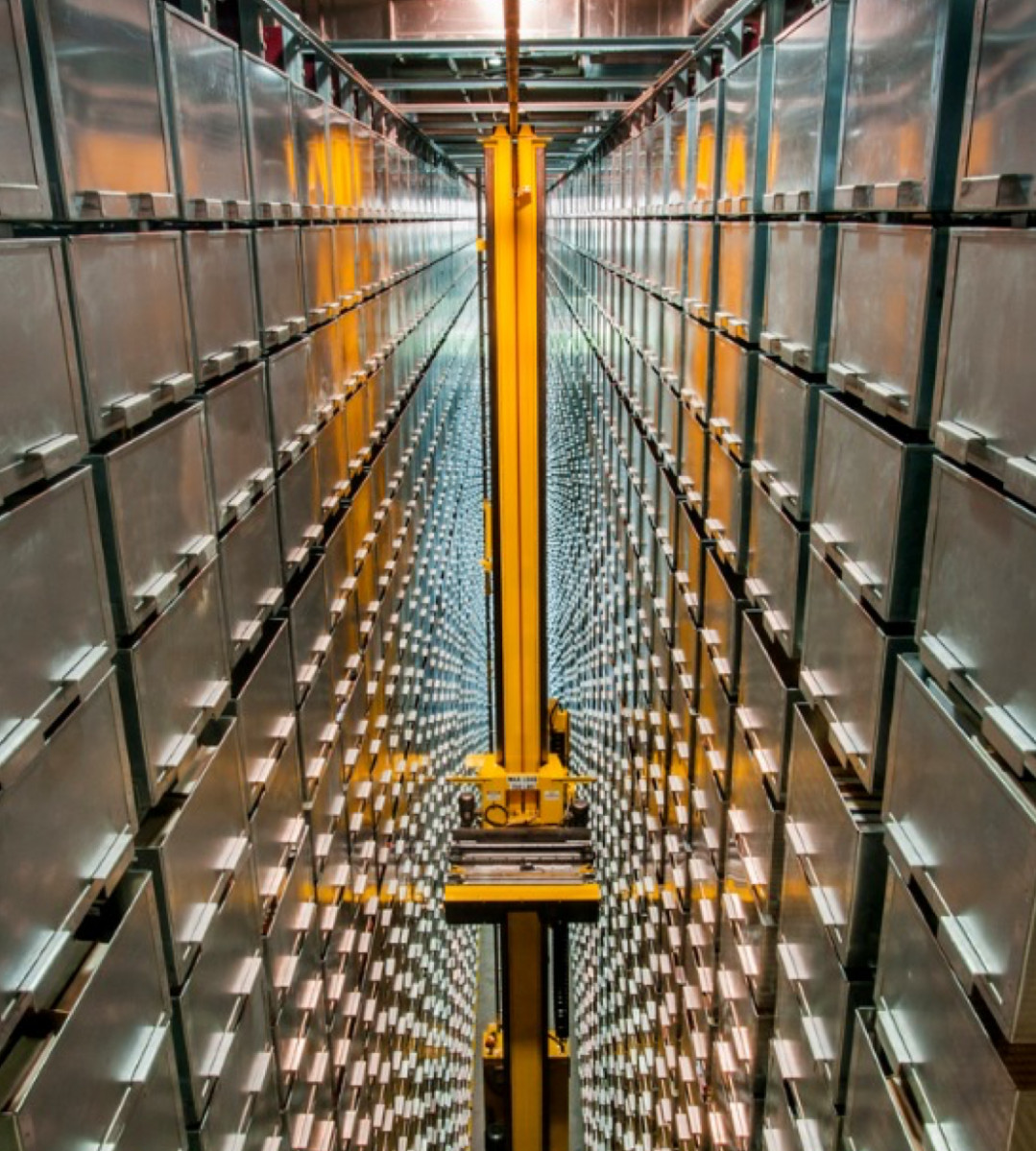

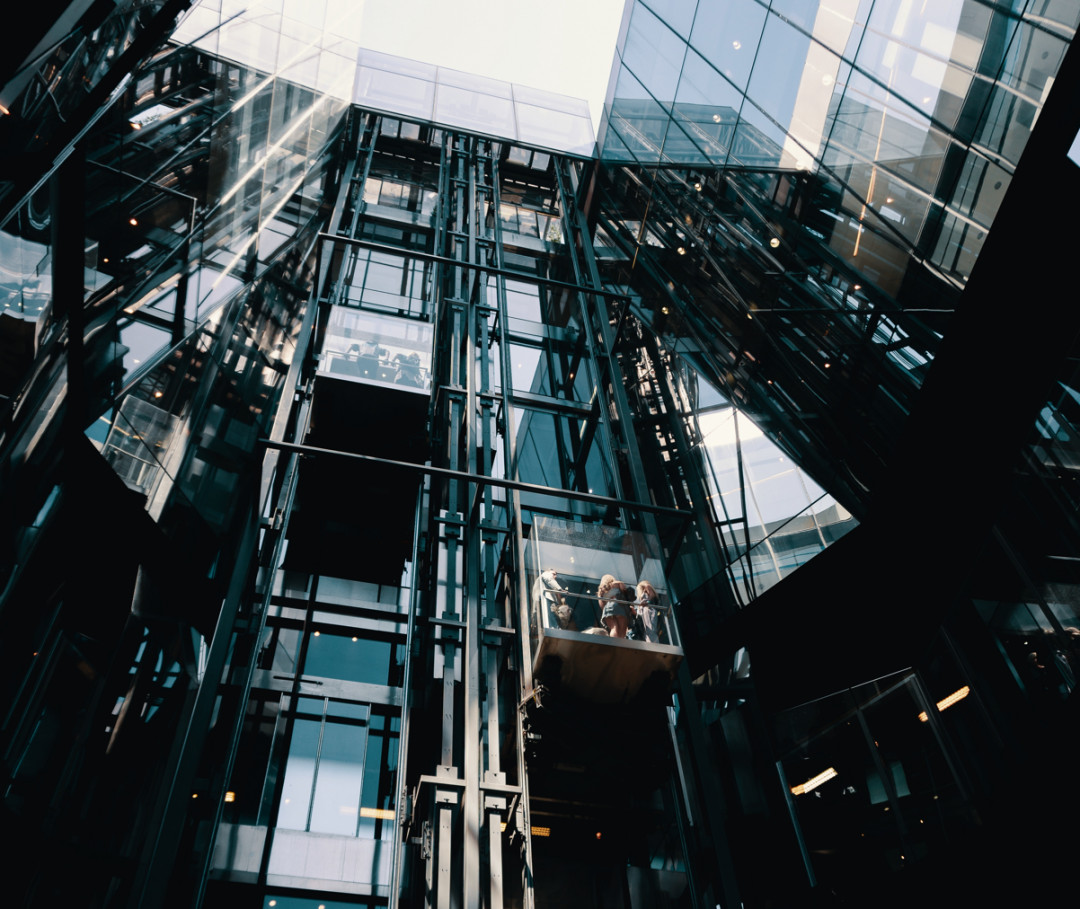

Application Fields
