Instantaneous Safety Gears

With one roller

Triangolo verde

With one roller

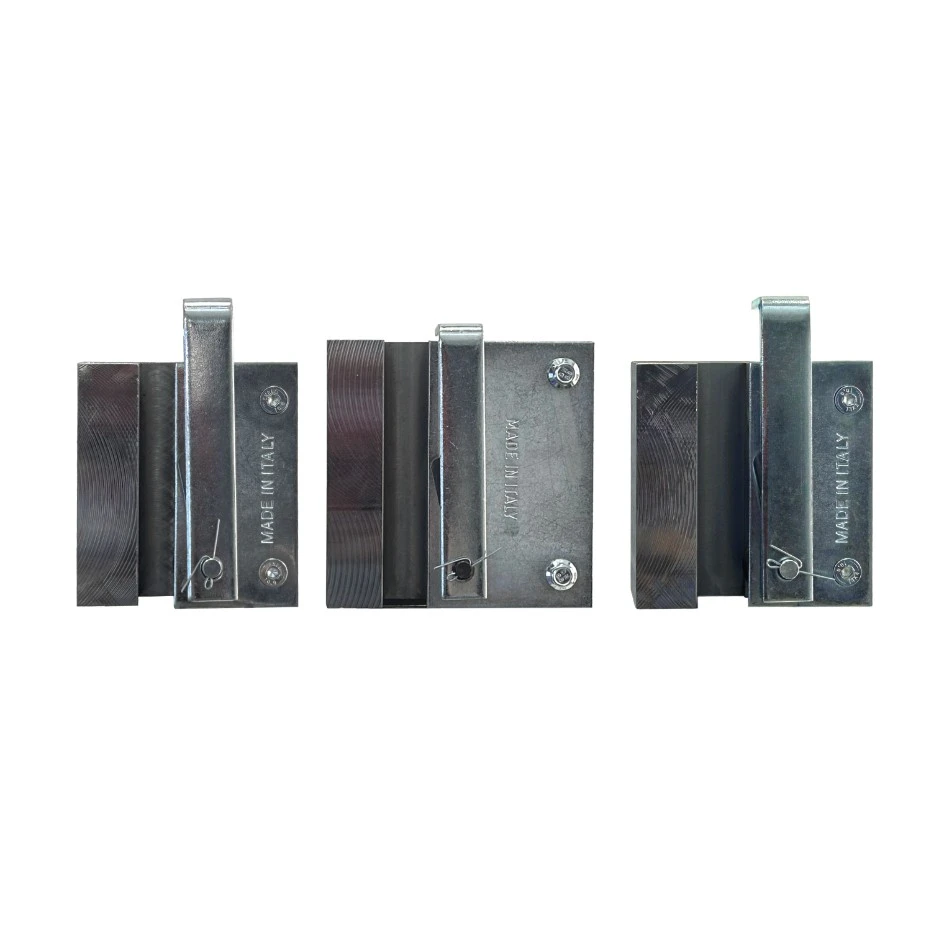

Type BP1BP2BP3 for guide from 5 to 9 mm, 10 mm and 16 mm. Approved by TÜV Germany according to Directive 95/16/EC and EN81-1/2 and 2014/33/EU directive and EN81-20/50.

Triangolo Rosso
BP1 tripping speed (m/s) BP1 load for guide 5 mm (kg) BP1 load for guide 6-8 mm (kg) BP1 load for guide 9 mm (kg)
0.50 1769 1573 2564
0.60 1702 1513 2467
0.70 1630 1449 2362
0.80 1553 1381 2251
0.90 1474 1311 2137
1.00 1395 1241 2022
1.10 1318 1171 1910
1.20 1242 1104 1799
1.32 1154 1026 1673
1.65 940 835 1362
BP2 tripping speed (m/s) BP2 load for guide 16 mm (kg)
0.50 4059
0.60 3905
0.70 3738
0.80 3563
0.90 3382
1.00 3201
1.10 3023
1.20 2848
1.32 2648
1.65 2156
BP3 tripping speed (m/s) BP3 load for guide 10 mm (kg) BP3 load for guide 16 mm (kg)
0.50 3123 3921
0.60 3005 3773
0.70 2876 3612
0.80 2741 3442
0.90 2603 3268
1.00 2463 3093
1.10 2326 2920
1.20 2192 2752
1.32 2037 2558
1.65 1659 2083
<
