Overspeed Governors
LX200 Bidirectional
Super fast, super small.

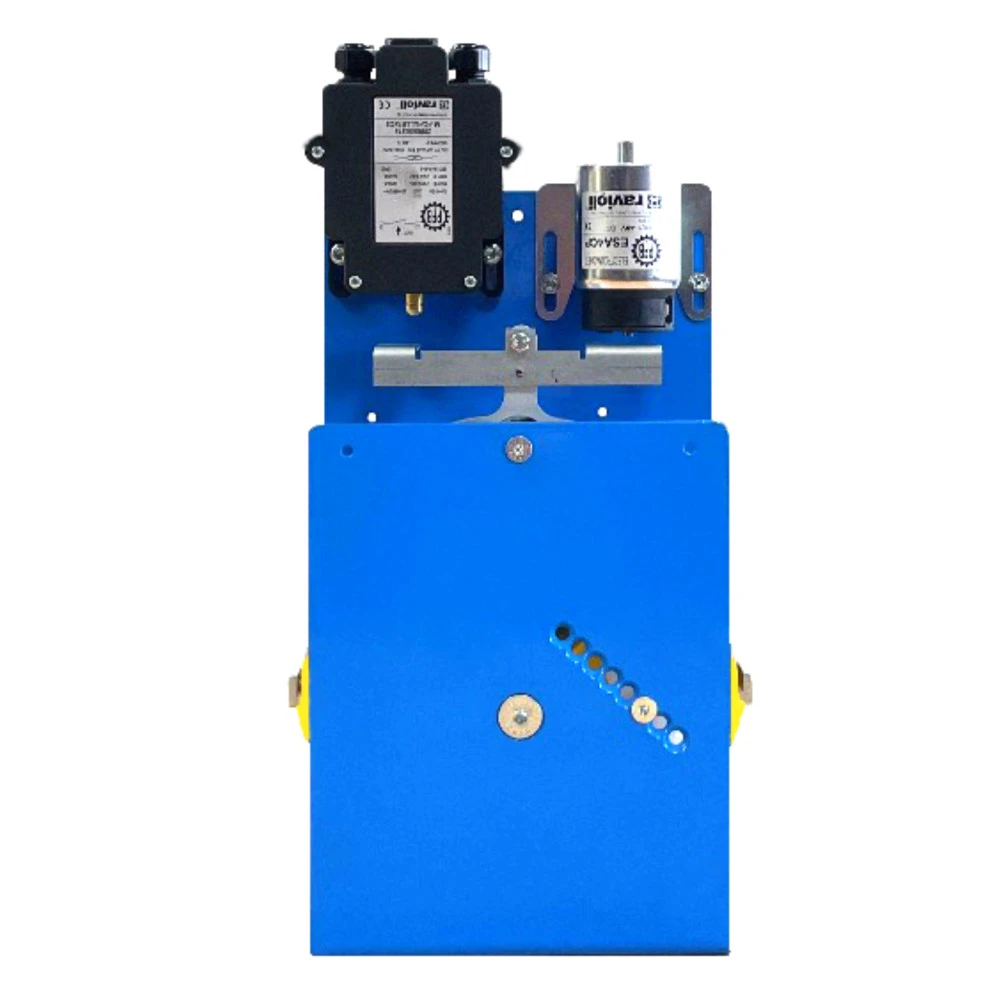

Overspeed governor LX200 Bidirectional
Homologated TÜV Germany according to Directive 2014/33/UE and Norms EN81-20/50.
Available with test groove, anticreeping device, protection cover, remote control. Available in internal, external or hang up version and with UCM device.
Discover its features now on YouTube
| LX200 Bidirectional | |
|---|---|
| Type of Pulley | Pulley Ø 200 mm Bidirectional for rope Ø 6/6.5 mm |
| Nominal speed | Up to 2,30 m/s |
| Tripping speed | From 0,20 m/s to 2,66 m/s |
| Test groove | |
| Hardened groove |
| Optional | |
|---|---|
| Rope safety guard | |
| Protection cover | |
| Remote control (IP 50) |
|
| Encoder | |
| UCM | |
| Guide rail fixing plate |
Combinable tension weights
🔽 : down tripping
🔽🔼 : up and down tripping
Associated products
Application Fields
Our products are designed to adapt to almost all new and existing systems. Discover now all the solutions.
Application Fields
Need more information?
Contact us and we will help you in choosing the right product for you.
